Android Custom Toast Example Windows Tricks

Toast is a mechanism used to display information in Android. Unlike Dialog, Toast has no focus, and the showtime is limited. A toast message dialog will disappear automatically after a certain amount of time. So Toast is generally used to display prompt messages to users.

Table of Contents

1. How To Use Toast.

Use Toast.makeText() method.

Toast toast = Toast.makeText(getApplicationContext(), "Default Toast Style", Toast.LENGTH_SHORT);

Use Toast Constructor. But you need to call Toast.setView(View view) method to set its content view. You also need to invoke it’s other methods to set related properties.

Toast toast = new Toast(getApplicationContext());
// Set custom view in toast.
toast.setView(toastView);
toast.setDuration(Toast.LENGTH_SHORT);
toast.setGravity(Gravity.CENTER, 0,0);

How to show Toast prompt.
```
toast.show();
```

2. Custom Toast Example.

If you can not watch the above video, you can see it on the youtube URL https://youtu.be/dTxXL4ltw9Y

2.1 Main Layout Xml File.

The main screen contains five buttons. Each button will prompt a different Toast message when clicked.

activity_toast.xml

<LinearLayout
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical">

    <Button
        android:id="@+id/defaultToastButton"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Default Toast" />

    <Button
        android:id="@+id/locationToastButton"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Custom Toast Location" />

    <Button
        android:id="@+id/imageToastButton"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Toast With Image" />

    <Button
        android:id="@+id/customToastButton"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Custom Toast" />

    <Button
        android:id="@+id/childThreadToastButton"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:text="Child Thread Toast" />
</LinearLayout>

2.2 Activity Java File.

This file includes 5 methods, each method includes java code that prompts a custom Toast.

ToastActivity.java

package com.dev2qa.example;

import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.support.v7.app.AppCompatActivity;
import android.view.Gravity;
import android.view.View;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.Toast;

public class ToastActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_toast);

        setTitle("dev2qa.com --- Android Toast Example");

        this.showDefaultToast();

        this.showToastInLocation();

        this.showImageInToast();

        this.showFullyCustomToast();

        this.showChildThreadToast();
    }
}

2.3 Default Toast Example.

// Show default Toast prompt.
private void showDefaultToast()
{
    Button toastButton = (Button)findViewById(R.id.defaultToastButton);
    toastButton.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View view) {
            Toast toast = Toast.makeText(getApplicationContext(), "Default Toast Style", Toast.LENGTH_SHORT);
            toast.show();
        }
    });
}

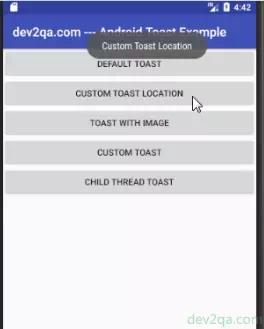

2.4 Show Toast Prompt In Specified Location.

// Show Toast prompt in a specified location.
private void showToastInLocation()
{
    Button toastButton = (Button)findViewById(R.id.locationToastButton);
    toastButton.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View view) {
            Toast toast = Toast.makeText(getApplicationContext(), "Custom Toast Location", Toast.LENGTH_SHORT);
            toast.setGravity(Gravity.TOP, 100,100);
            toast.show();
        }
    });
}

2.5 Show Image In Toast Prompt.

// Show images in Toast prompt.
private void showImageInToast()
{
    Button toastButton = (Button)findViewById(R.id.imageToastButton);
    toastButton.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View view) {
            Toast toast = Toast.makeText(getApplicationContext(), "Show Image In Toast", Toast.LENGTH_SHORT);
            toast.setGravity(Gravity.CENTER, 0, 0);
            LinearLayout toastContentView = (LinearLayout) toast.getView();
            ImageView imageView = new ImageView(getApplicationContext());
            imageView.setImageResource(R.drawable.if_snowflake);
            toastContentView.addView(imageView, 0);
            toast.show();
        }
    });
}

2.6 Custom Toast View Content.

// Fully customize Toast view content.
private void showFullyCustomToast()
{
    Button toastButton = (Button)findViewById(R.id.customToastButton);
    toastButton.setOnClickListener(new View.OnClickListener() {
        @Override
        public void onClick(View view) {

            // Get the custom layout view.
            View toastView = getLayoutInflater().inflate(R.layout.activity_toast_custom_view, null);

            // Initiate the Toast instance.
            Toast toast = new Toast(getApplicationContext());
            // Set custom view in toast.
            toast.setView(toastView);
            toast.setDuration(Toast.LENGTH_SHORT);
            toast.setGravity(Gravity.CENTER, 0,0);
            toast.show();
        }
    });
}

This example also needs below two files.

activity_toast_custom_view.xml

This is the custom view object that will be displayed in Toast prompt message. This file is saved in app/res/layout folder.

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="horizontal"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@drawable/custom_toast_background"
    android:padding="10dp">

    <ImageView
        android:id="@+id/customToastImage"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:src="@drawable/message_block"/>

    <TextView
        android:id="@+id/customToastText"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Fully custom toast."
        android:textSize="20dp"/>

</LinearLayout>

custom_toast_background.xml

This is a custom shape that is used as above custom view’s background. This file is saved in app/res/drawable folder.

<shape xmlns:android="http://schemas.android.com/apk/res/android"
    android:shape="rectangle"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content">

    <solid android:color="@android:color/holo_green_light" />

    <corners android:radius="15dp" />

</shape>

2.7 Toast Message From Child Thread.

public class ToastActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_toast);

        setTitle("dev2qa.com --- Android Toast Example");

        this.showChildThreadToast();
    }

    // Below code are used to display Toast message from child thread.

    // This variable is used to identify where the message is come from.
    private int SHOW_TOAST_MESSAGE = 1;

    // This Handler is used to handle message from child thread.
    private Handler toastActivityHandler = new Handler(){
        @Override
        public void handleMessage(Message msg) {
            if(msg.what == SHOW_TOAST_MESSAGE)
            {
                Toast toast = Toast.makeText(getApplicationContext(), "Toast From Child Thread.", Toast.LENGTH_SHORT);
                toast.setGravity(Gravity.RIGHT | Gravity.CENTER_VERTICAL, 10, 10);
                toast.show();
            }
        }
    };

    private void showChildThreadToast()
    {
        Button toastButton = (Button)findViewById(R.id.childThreadToastButton);
        toastButton.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View view) {

                // Create a child thread.
                Thread childThread = new Thread(){
                    @Override
                    public void run() {
                        // Send message from child thread to main thread.
                        Message msg = new Message();
                        msg.what = SHOW_TOAST_MESSAGE;
                        toastActivityHandler.sendMessage(msg);
                    }
                };

                // Start the thread.
                childThread.start();
            }
        });
    }

}

The World Communication

August 7, 2019 at 7:43 pm

Really work it. Thank you for solution.

Ahmed Al-Adaileh

February 28, 2019 at 5:54 pm

Looks really good and works just fine..
Thank you

mohamed abdalla

February 13, 2019 at 10:09 am

Why do we use findviewbyid inside inflate method in custom toast?

Jerry Zhao
February 13, 2019 at 11:41 am

We use findViewById to get the button object, then add onClick event to each button object to show difference toast message.
